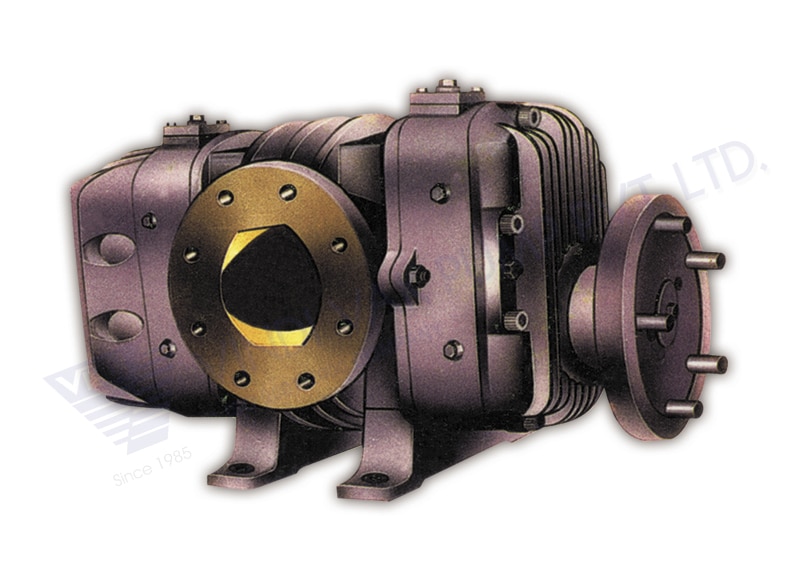

AIR COOLED COMPRESSOR - VR/VRK SERIES
Over a period of time we have developed a series of Twin Lobe Compressors / Roots blowers having unmatched quality & performance. These compressors are specially designed for continuous applications, demanding constant flow at varying discharge pressures, such as in E.T.P., Pneumatic Conveying etc.
These twin Lobe Pressure Compressors are Air Cooled Machines and are capable to develop pressure upto 1 kg./Cm2 & for vacuum duty up to 0.6 kg/cm2. Two stage machines can be offered for pressure up to 2.2 kg/cm2. The Compressors are being manufactured in 10 different models to cover the suction capacity ranging from 70 M3/hr to 7000 M3/hr. As per required suction capacity and pressure requirement, suitable model of the Compressors can be offer.
These Compressors are designed in such a way that the same can have vertical or horizontal air flow. Further, the Compressor with its standard accessories is being supplied as one compact unit which makes it very easy to install. It is also available as bare machine for replacement.
These compressors are tested for performance as per BS-1571 Part II to determine capacity, pressure, and power consumption. Stringent quality control tests are carried out at each stage of production and each unit is given a test run lasting several hours under increased load.
|Casing||CI as per IS 210 Grade FG 260|
|Main Cover||CI as per IS 210 Grade FG 260|
|Outer Cover||CI as per IS 210 Grade FG 260|
|Rotor with shaft||One piece EN-8 forging|
|Gears||EN-353/ 20 MnCr5 duly Hardened to 50 HRC & Grounded|
